Features:

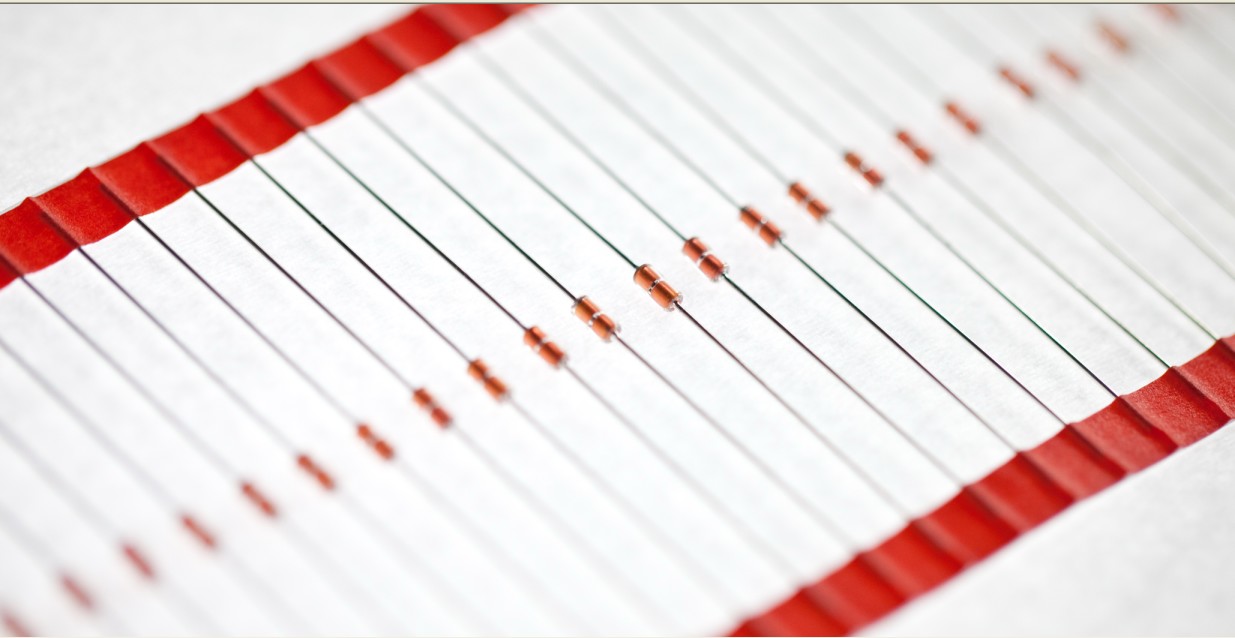

¡ö Glass-encapsulated Diode type provides High-level heat resistance
¡ö Proven long term Stability and Reliability ,High Sensitivity and Fast thermal response
¡ö The wire diameter is large enough to support automatic mounting
¡ö HVAC equipment, water heaters, home appliances, kitchen appliances, solar systems, batteries, refrigerators
¡ö Automotive, hybrid vehicles, fuel cell vehicles for Electric Power Steering System
¡ö Assembly into various probes of Temperature sensors
¡ö General Instrumentation applications
|
XX
¡ª ¢Ù |
MF
¡ª ¢Ú |
58
¡ª¡ª ¢Û |
-327
¡ª ¢Ü |
-502
¡ª ¢Ý |
F
¡ª ¢Þ |
Notes£º
¢Ù XIXI Co.
¢Ú NTC thermistor

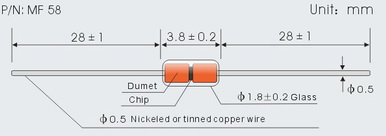

¢Û Diode Glass encapsulated type modle 58
¢Ü B value£¨B25/50¡æ£© Example: 327-- B 25/50¡æ: 3270
¢Ý Standard resistance value at 25¡æ£¨R25¡æ£©,Example£º502. R25¡æ is 5K¦¸
¢Þ R25¡æ interchangeability precision£º
F£¨±1%£©£»G£¨±2%£©£»H£¨±3%£©£»J£¨±5%£©£»K£¨±10%£©
specification |
R25¡æ £¨KΩ£© |
B25/50¡æ £¨K£© |
disspation constant £¨mW/¡æ£© |
time constant £¨S£© |
operation temperature range
£¨¡æ£© |
XXMF58 -347-202¡õ |
2 |
3470 | approx. 2.1 typical in still air at 25¡æ |
10-20 typical in still air |
-40¡«250 |
XXMF58 -327-347-502¡õ |
5 |
3270/3470 | |||
XXMF58-347/390/395-103¡õ |
10 |
3470/3900/3950 | |||
XXMF58-395-473¡õ |
47 |
3950 | |||
XXMF58-395/400-503¡õ |
50 |
3950/4000 | |||
XXMF58-405/420-104¡õ |
100 |
4050/4200 | |||
Note 2) We will produce suitable temperature sensors according to the technical details you provide such as dimension, operating temperature, thermal time constant, precision, etc.
