----------MF59 Series---------- |
|

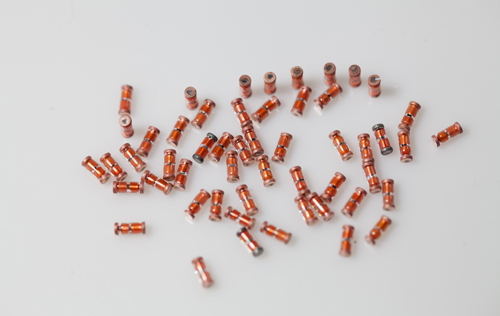

Features:
¡ö Surface mountable, and excellent solderability with tin-plated electrodes
¡ö Glass-encapsulated package provides High-level heat resistance
¡ö Support Tape and reel packaging, and Suitable to be used in a narrower space
|
Applications:
¡ö Applications requiring high reliability where general-purpose chip thermistors cannot meet
¡ö Overheat prevention for industrial motors
¡ö Temperature assurance for surface mount electric/electronic parts |

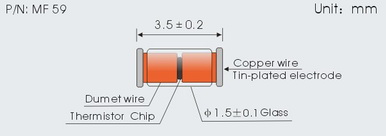

Dimensions: |
|
Specification
illustration:
XX
¡ª
¢Ù
|
MF
¡ª
¢Ú
|
59
¡ª¡ª
¢Û
|
-327
¡ª
¢Ü
|
-502
¡ª
¢Ý
|
F
¡ª
¢Þ
|
Notes£º
¢Ù XIXI Co.
¢Ú NTC thermistor
¢Û Glass encapsulated Surface mount type modle 59
¢Ü B value£¨B25/50¡æ£© Example: 327-- B 25/50¡æ: 3270
¢Ý Standard resistance value at 25¡æ£¨R25¡æ),Example£º502. R25¡æ is 5K¦¸
¢Þ R25¡æ interchangeability precision£º
F£¨±1%£©£»G£¨±2%£©£»H£¨±3%£©£»J£¨±5%£©£»K£¨±10%£©
|
Product
specification: |
specification |
R25¡æ
£¨KΩ£© |
B25/50¡æ
£¨K£© |
disspation constant
£¨mW/¡æ£© |
time constant
£¨S£© |
operation temperature range
£¨¡æ£© |
XXMF59 -347-202¡õ |
2 |
3470 |
approx. 1.7 typical in still air at 25¡æ |
8-12 typical in still air
|
-40¡«204 |
XXMF59 -327-347-502¡õ |
5 |
3270/3470 |
XXMF59 -347/390/395-103¡õ |
10 |
3470/3900/3950 |
XXMF59 -395-473¡õ |
47 |
3950 |
XXMF59 -395/400-503¡õ |
50 |
3950/4000 |
XXMF59 -405/420-104¡õ |
100 |
4050/4200 |
|
|
|
|
Note 1) Values above are for reference only. B value among 3000-4500K, and R 25¡æ among 0.4KΩ-2.3 MΩ can be custom designed.
Note 2) We will produce suitable temperature sensors according to the technical details you provide such as dimension, operating temperature, thermal time constant, precision, etc. |
