Features:

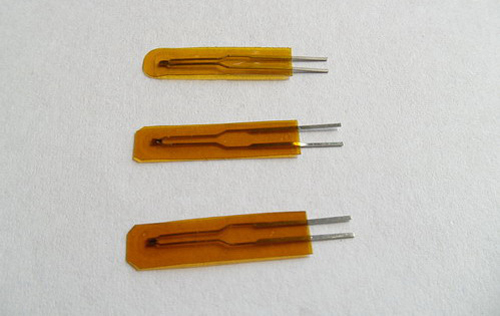

¡ö Polyimide thin- film Insulated with high
accuracy
¡ö Proven long term Stability and Reliability
¡ö High Sensitivity and Fast thermal response
¡ö Light touch solution with low cost and high durability
¡ö Temperature sensing , control and compensation
¡ö Copying machines and multi-function printers (surface)
¡ö Battery packs, IT equipment, mobile devices, LCDs
XX — ¢Ù |
MF — ¢Ú |
5A-6 —— ¢Û |
-397 — ¢Ü |
-103 — ¢Ý |
F — ¢Þ |
Notes£º
¢Ù XIXI Co.
¢Ú NTC thermistor
¢Û Polyimide thin- film Insulated type modle 5A-6
¢Ü B value£¨B25/50¡æ£© Example: 397-- B 25/50¡æ: 3970
¢Ý Standard resistance value at 25¡æ£¨R25¡æ£©,Example£º103. R25¡æ is 10KΩ
¢Þ R25¡æ interchangeability precision£º
F£¨±1%£©£»G£¨±2%£©£»H£¨±3%£©£»J£¨±5%£©£»K£¨±10%£©
specification |
R25¡æ £¨KΩ£© |
B25/50¡æ £¨K£© |
disspation constant £¨mW/¡æ£© |
time constant £¨S£© |
operation temperature range
£¨¡æ£© |
XXMF5A-6 -347-202¡õ |
2 |
3470 | 0.75-1.5 typical in still air at 25¡æ |
3.5-6 typical in still air |
-30¡«200 |
XXMF5A-6 -327-347-502¡õ |
5 |
3270/3470 | |||
XXMF5A-6-347/390/395-103¡õ |
10 |
3470/3900/3950 | |||
XXMF5A-6-395-473¡õ |
47 |
3950 | |||
XXMF5A-6-395/400-503¡õ |
50 |
3950/4000 | |||
XXMF5A-6-405/420-104¡õ |
100 |
4050/4200 | |||
Note 2) We will produce suitable temperature sensors according to the technical details you provide such as dimension, operating temperature, thermal time constant, precision, etc.
