Features:

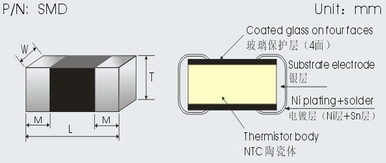

¡ö All sizes are constructed 4-side glass encapsulation
¡ö Highly reliable multilayer and monolithic structure, Leadless, ideal for high density SMT installation
¡ö Excellent Temperature Coefficient , Proven high Reliability and Stability
¡ö Temperature sensing , control and compensation
¡ö Rechargeable batteries and chargers, Telecom exchanger, CPU
¡ö Temperature compensating circuit of LCD ,TCXO, DVD, Printer
|
XX
¡ª ¢Ù |
MF
¡ª ¢Ú |
SMD
¡ª¡ª ¢Û |
-420
¡ª ¢Ü |
B — ¢Ý |
-104
¡ª ¢Þ |
F — ¢ß |
06
¡ª ¢à |
Notes£º
¢Ù XIXI Co.
¢Ú NTC thermistor
¢Û Surface-mounted type modle SMD
¢Ü B value£¨B25/85¡æ£© Example: 420-- B 25/85¡æ: 4200
¢Ý Temp.of B value testing, A ( 25¡æ/50¡æ ) , B ( 25¡æ/85¡æ )
¢Þ Standard resistance value at 25¡æ£¨R25¡æ£©,Example£º104. R25¡æ is 100KΩ
¢ß R25¡æ interchangeability precision£º
F£¨±1%£©£»G£¨±2%£©£»H£¨±3%£©£»J£¨±5%£©£»K£¨±10%£©
¢à Size code :
2£¨0201£©£»4£¨0402£©£»6£¨0603£©£»8£¨0805£©£»12£¨1206£©
specification |
R25¡æ £¨KΩ£© |
B25/50¡æ £¨K£© |
disspation constant £¨mW/¡æ£© |
time constant £¨S£© |
operation temperature range
£¨¡æ£© |
XXMFSMD -347-202¡õ |
2 |
3470 | 0.90-3.5 typical in still air at 25¡æ |
1.0-6.0 typical in still air |
-40¡«125 |
XXMFSMD -327-347-502¡õ |
5 |
3270/3470 | |||
XXMFSMD -347/390/395-103¡õ |
10 |
3470/3900/3950 | |||
XXMFSMD -395-473¡õ |
47 |
3950 | |||
XXMFSMD -395/400-503¡õ |
50 |
3950/4000 | |||
XXMFSMD -405/420-104¡õ |
100 |
4050/4200 | |||
Note 2) We will produce suitable temperature sensors according to the technical details you provide such as dimension, operating temperature, thermal time constant, precision, etc.
